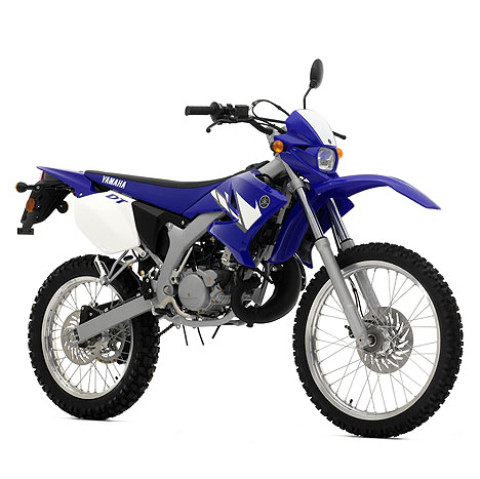

Yamaha DT 50 R
| Main info | |
|---|---|
| Make | Yamaha |
| Type | DT 50 R |
| Year built | 2005 |
| Estimated price | — |
| Engine | |
| Stroke | 2 |
| Cylinders | 1 |
| Displacement | 49,9 cc |
| Bore and stroke | 40.3 x 39 mm |
| Compression | 12:0.5 |
| Cooling | Liquid |
| Lubrication | Seperate, Automatic |
| Carburetor | Dell'Orto PHBN 16 |
| Ignition | CDI |
| Gears | 6 |
| Sprockets | — |
| Starter | Kickstart |
| Suspension & brakes | |
| Front suspension | Hydraulic and telescopic fork |
| Rear suspension | Hydraulic unit swing |
| Front brake | Disc 240mm |
| Rear brake | Disc 218mm |
| Front tire | 80/90 - 21 |
| Rear tire | 110/80 - 18 |
| Dimensions | |
| Length | 2050 mm |
| Width | 850 mm |
| Height | 1160 mm |
| Wheelbase | 1350 mm |
| Rake | — |
| Trail | — |
| Seat height | 870 mm |
| Dry weight | 105 Kg |
| Fuel tank | — |
| Oil tank | — |
| Top speed | 95 km/h |
| Performance figures | |
| Horsepower | 8 @ 8750 rpm |
| Kilowatts | — |
| Torque (Nm) | — |
