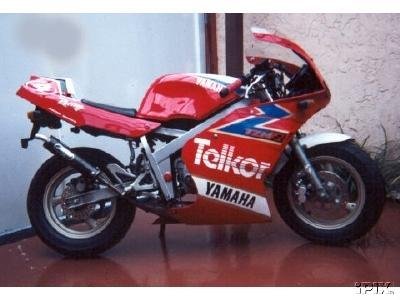

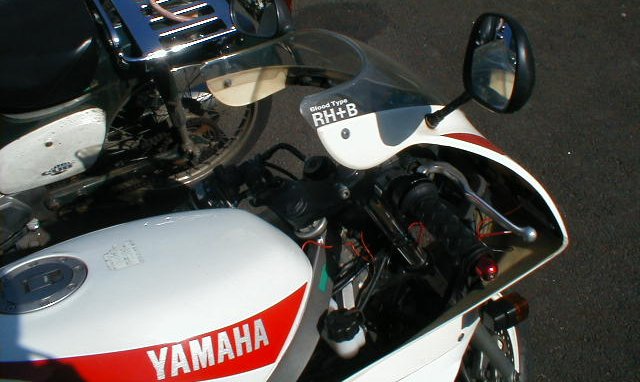

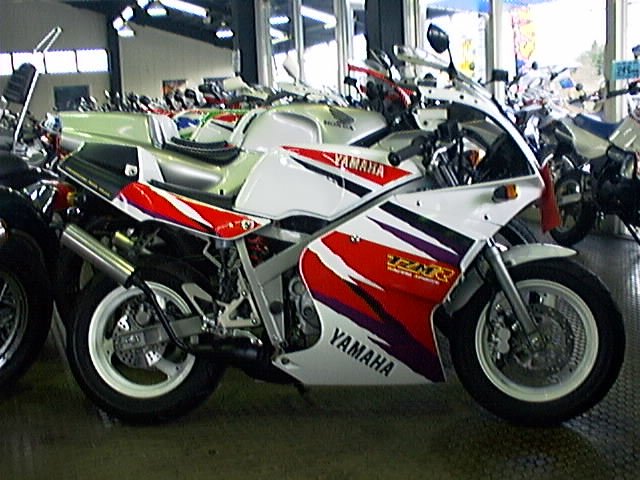

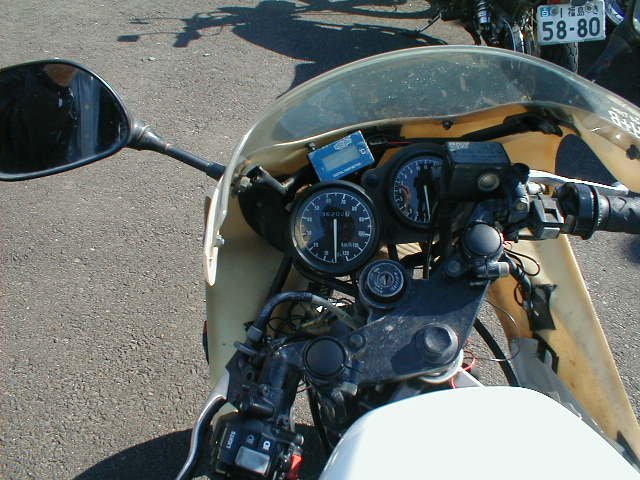

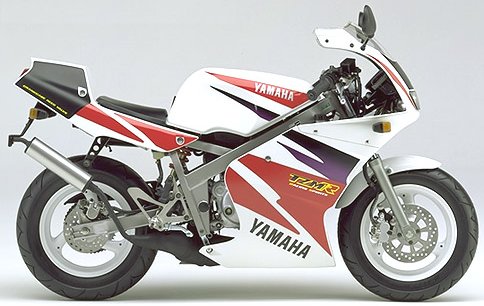

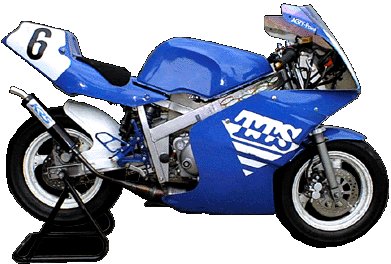

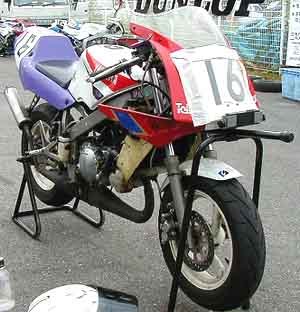

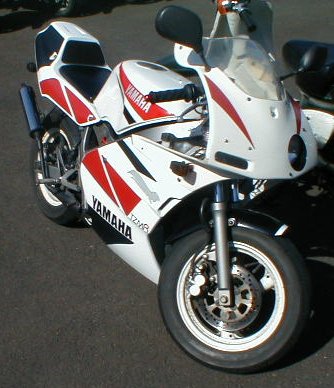

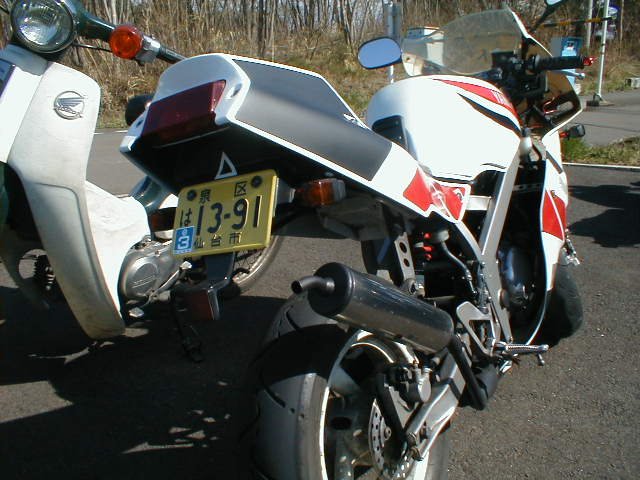

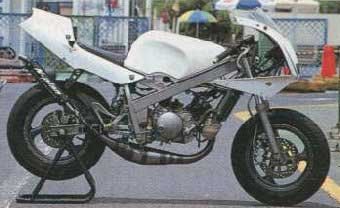

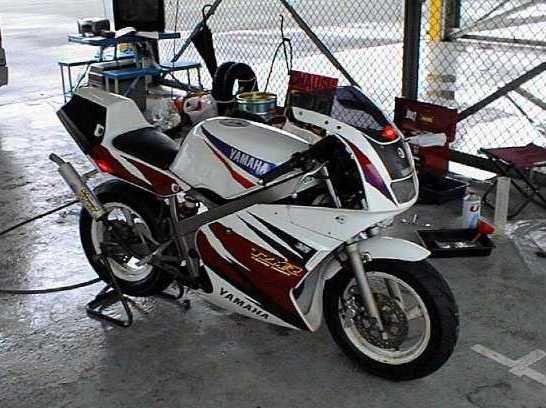

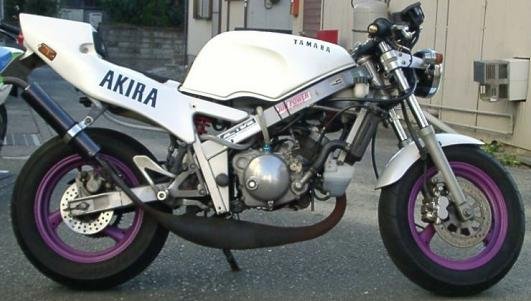

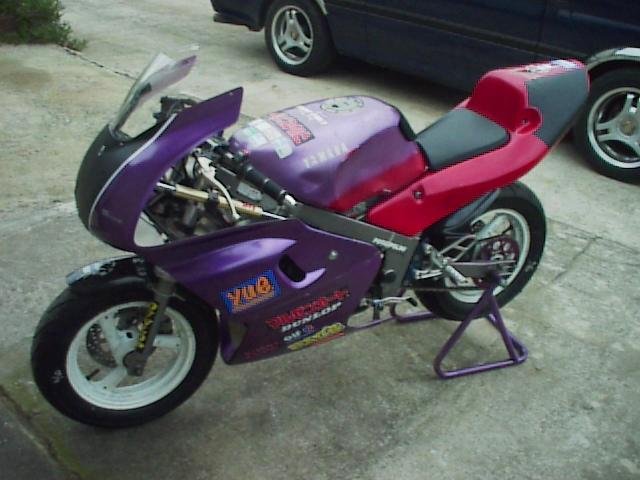

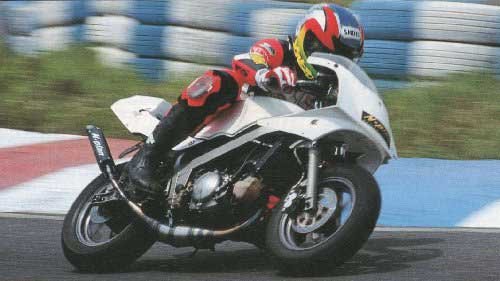

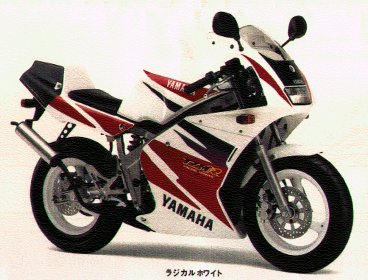

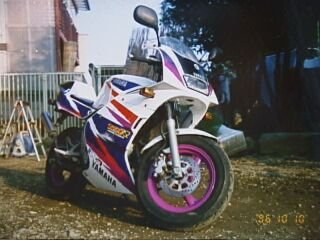

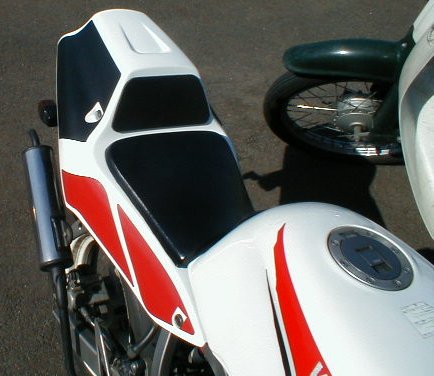

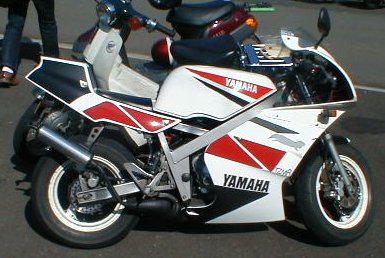

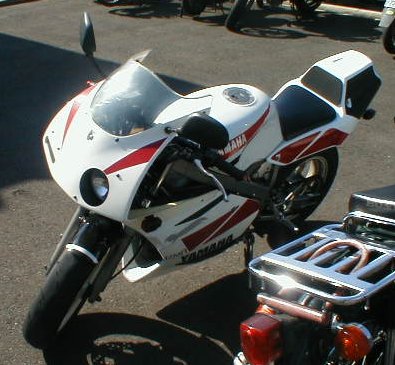

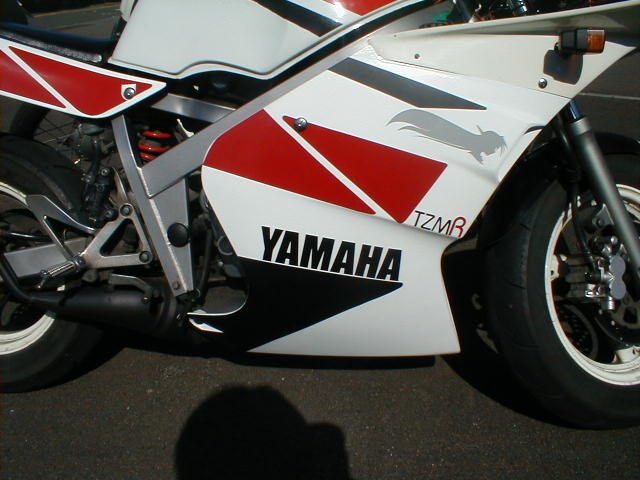

Yamaha TZM 50
(Click image for more)
More pictures
| Main info | |
|---|---|
| Make | Yamaha |
| Type | TZM 50 |
| Year built | 1985 |
| Estimated price | — |
| Engine | |
| Stroke | 2 |
| Cylinders | 1 |
| Displacement | 49cc |
| Bore and stroke | 40 x 39.7 mm |
| Compression | 7.5:1 |
| Cooling | Liquid |
| Lubrication | Seperate, Automatic |
| Carburetor | VM18SS X1 |
| Ignition | CDI |
| Gears | 6 |
| Sprockets | — |
| Starter | — |
| Suspension & brakes | |
| Front suspension | — |
| Rear suspension | — |
| Front brake | Disc |
| Rear brake | Disc |
| Front tire | 100/90 - 12 |
| Rear tire | 120/80 - 12 |
| Dimensions | |
| Length | — |
| Width | — |
| Height | — |
| Wheelbase | — |
| Rake | — |
| Trail | — |
| Seat height | 780 mm |
| Dry weight | 78 Kg |
| Fuel tank | 9.3 L |
| Oil tank | 0.99 |
| Top speed | 105 km/h |
| Performance figures | |
| Horsepower | 7.2 @ 10000 rpm |
| Kilowatts | — |
| Torque (Nm) | — |
