Sachs RS 50
| Main info | |
|---|---|
| Make | Sachs |
| Type | RS 50 |
| Year built | 1986 |
| Estimated price | — |
| Engine | |
| Stroke | 2 |
| Cylinders | 1 |
| Displacement | 49,9 cc |
| Bore and stroke | 40,0 x 39,7 mm |
| Compression | 10:1 |
| Cooling | Liquid |
| Lubrication | Seperate, Automatic |

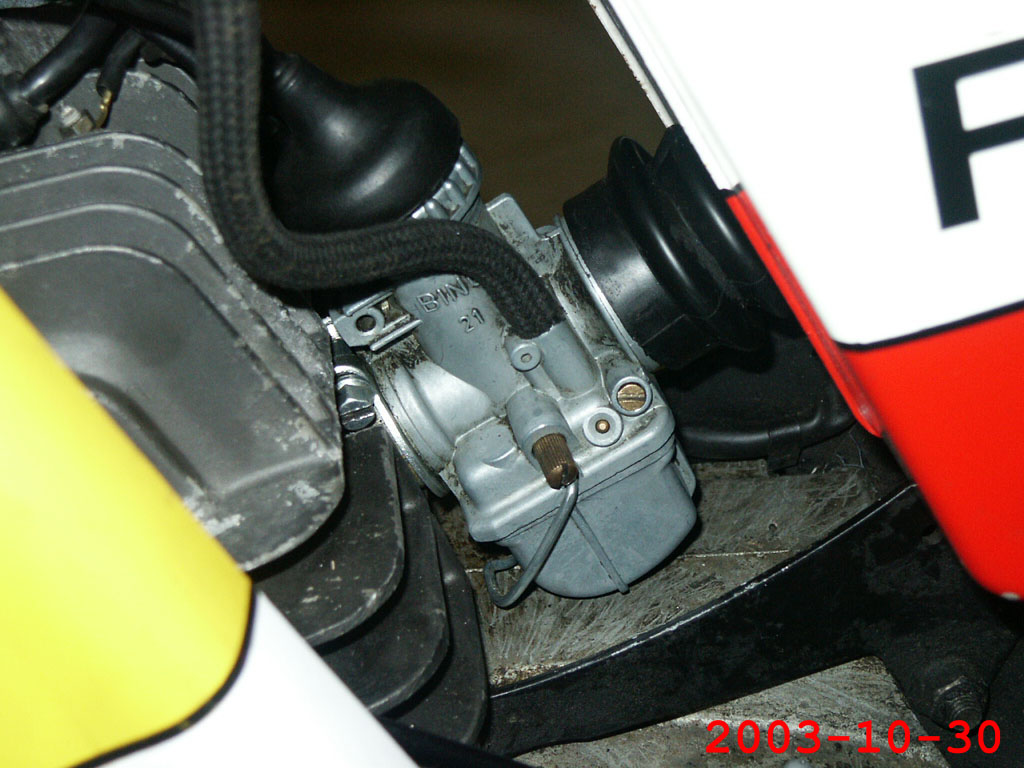

| Carburetor | Bing 21, 20mm |
| Ignition | electronic contactless magneto |
| Gears | 6 |
| Sprockets | — |
| Starter | kickstarter |
| Suspension & brakes | |
| Front suspension | — |
| Rear suspension | — |
| Front brake | Disc 220mm |
| Rear brake | Drum 140mm |
| Front tire | 2.75 |
| Rear tire | 3,5 |
| Dimensions | |
| Length | — |
| Width | 550mm |
| Height | — |
| Wheelbase | — |
| Rake | — |
| Trail | — |
| Seat height | 750 mm |
| Dry weight | 110 Kg |
| Fuel tank | 13 L |
| Oil tank | — |
| Top speed | 105 km/h |
| Performance figures | |
| Horsepower | 8.3 @ 9100 rpm |
| Kilowatts | 6,12 kW @ 9100 rpm |
| Torque (Nm) | — |
